PRODUCT APPLICATIONS
Widely used for ventilation and air supply in industrial plants, office buildings, hospitals, hotels, restaurants, shopping malls, theaters, and basements, as well as in HVAC systems.
PERFORMANCE FEATURES
Fresh air path design effectively suppresses lateral noise caused by installation; features a forward-curved multi-blade impeller made of galvanized steel, ensuring high strength, resistance to deformation, and high air pressure; blade geometry—featuring an optimized tilt angle—stabilizes airflow output amidst static pressure fluctuations while effectively reducing noise; utilizes a detachable split-body structure with an openable rear panel, prioritizing user convenience and ease of maintenance; incorporates a dual-layer sound-dampening design for superior noise reduction; equipped with square inlet and outlet flanges for easy installation; meticulously crafted with precision engineering, combining reliable performance with a sleek appearance; supports various installation methods—including ceiling suspension, floor mounting, and wall hanging—with adjustable air outlet orientation; available in direct-drive and belt-drive configurations.
The company follows the service principle of “user first” and has set up a professional technical support team dedicated to serving every customer with care.

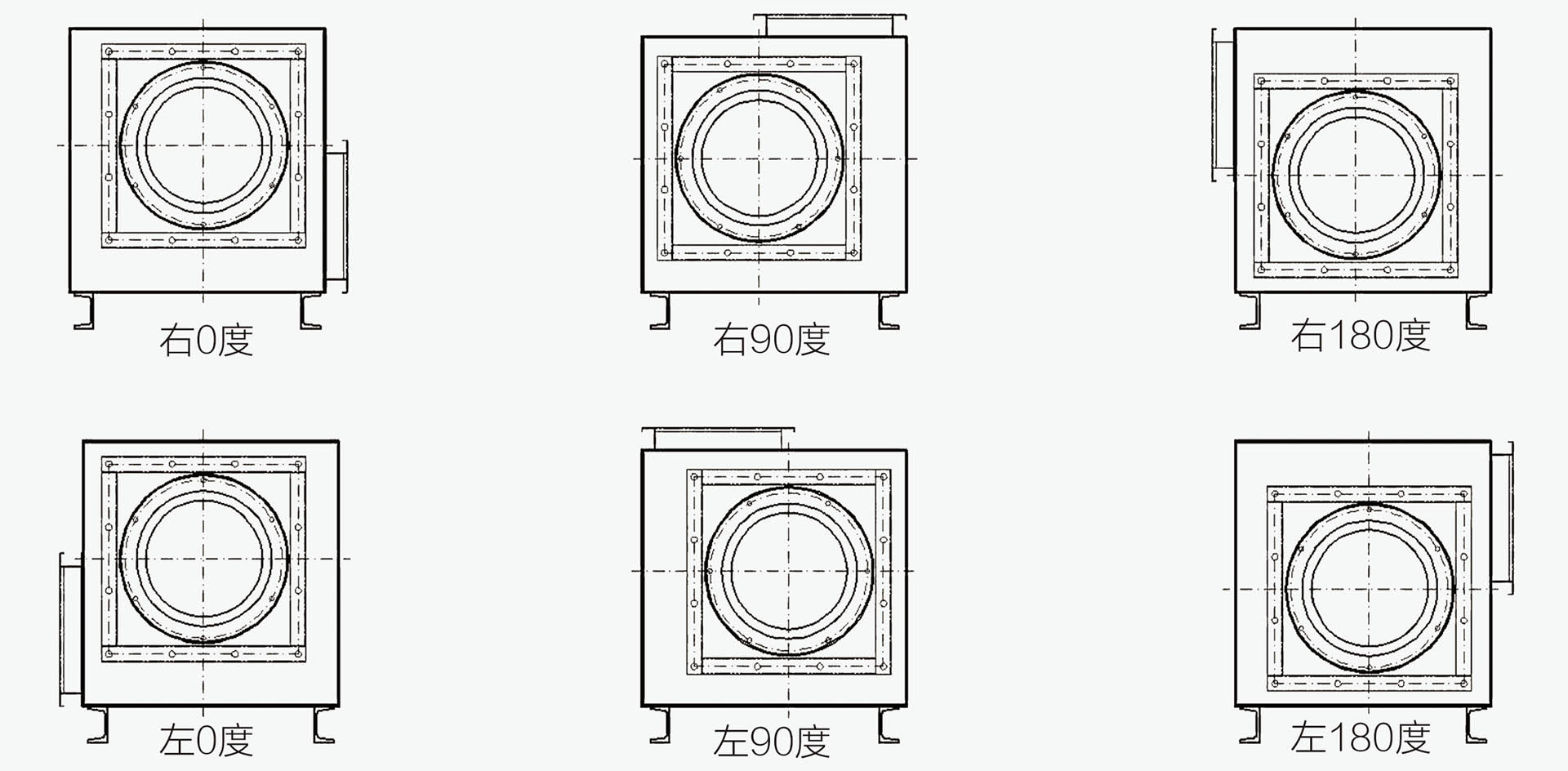

Diagram of Artisan Rotation Direction
PARAMETER
| Machine Number（No） | Rotational speed（r/min） | power(KW-P) | Airflow volume(m3/h) | Airflow volume(Pa) | noisedB(A) | Air intake(内径mm) | Air outlet / Length × Width(inner diametermm) | 180-degree external dimensions (length * width * height) |
| 3.0A | 1450 | 1.5-4Single Phase | 3000-5500 | 690-420 | ≤60 | 370*370 | 252*180 | 550*595*595 |
| 1.5-4Three Phase | 370*370 | 252*180 | 550*595*595 | |||||
| 3.2A | 1450 | 2.2-4Single Phase | 4140-6870 | 890-650 | ≤62 | 385*385 | 280*220 | 620*705*650 |
| 2.2-4Three Phase | 385*385 | 280*220 | 620*690*650 | |||||
| 3.5A | 1450 | 3-4Single Phase | 4780-8180 | 1046-780 | ≤65 | 440*440 | 300*245 | 670*750*700 |
| 3-4Three Phase | 4780-8180 | 1046-780 | ≤65 | 440*440 | 300*245 | 670*720*700 | ||
| 960 | 2.2-6Three Phase | 3200-7090 | 580-320 | ≤63 | 440*440 | 300*245 | 670*730*700 | |
| 4A | 1450 | 4-4Three Phase | 9300-12930 | 1360-1130 | ≤67 | 510*510 | 330*255 | 730*740*765 |
| 960 | 3-6Three Phase | 6150-10600 | 680-540 | ≤63 | 510*510 | 330*255 | 730*800*765 | |
| 4.5A | 960 | 4-6Three Phase | 7850-12100 | 750-620 | ≤66 | 540*540 | 360*290 | 780*890*840 |
| 1450 | 5.5-4Three Phase | 9000-15200 | 1460-1220 | ≤71 | 540*540 | 360*255 | 780*860*840 | |
| 5A | 960 | 5.5-6Three Phase | 8780-17400 | 810-640 | ≤68 | 580*580 | 400*330 | 860*930*931 |
| 1450 | 7.5-4Three Phase | 11500-19100 | 1900-1410 | ≤73 | 580*580 | 400*255 | 860*850*931 | |
| 5.6A | 960 | 7.5-6Three Phase | 9790-19800 | 1200-850 | ≤70 | 640*640 | 450*380 | 960*1070*1050 |
| 6.3A | 960 | 11-6Three Phase | 12050-23000 | 1380-1090 | ≤73 | 730*730 | 504*400 | 1070*1130*1150 |
| 7.1C | 700 | 11-4Three Phase | 16800-27800 | 1020-900 | ≤76 | 820*820 | 568*410 | 1210*1430*1290 |
| 780 | 15-4Three Phase | 18900-31600 | 1250-1030 | ≤77 | 820*820 | 568*410 | 1210*1430*1290 | |
| 7.6C | 590 | 18.5-4Three Phase | 24600-36900 | 980-800 | ≤79 | 840*840 | 608*410 | 1290*1430*1375 |
| 650 | 22-4Three Phase | 27560-39400 | 1100-980 | ≤81 | 840*840 | 608*410 | 1290*1430*1375 | |
| 2.4# | 1450 | 4-4Three Phase | 6088-13793 | 1130-867 | ≤71 | 700*700 | 485*370 | 1085*870*1200 |
| 2.5# | 1450 | 5.5-4Three Phase | 7862-16810 | 1380-1000 | ≤73 | 730*730 | 510*400 | 1120*980*1245 |
| 2.8# | 1450 | 7.5-4Three Phase | 9132-21730 | 1656-1220 | ≤75 | 820*820 | 575*425 | 1250*1065*1380 |
| 3# | 1450 | 11-4Three Phase | 12028-24160 | 1881-1370 | ≤78 | 850*850 | 607*460 | 1322*1170*1460 |
| 15-4Three Phase | 13828-27110 | 2181-1420 | ≤80 | 850*850 | 607*460 | 1322*1215*1460 | ||
| 3.1# | 1450 | 18.5-4Three Phase | 14200-30200 | 2390-1530 | ≤83 | 840*840 | 608*440 | 1290*1160*1373 |
| 22-4Three Phase | 15710-35250 | 2581-1670 | ≤86 | 840*840 | 608*440 | 1290*1160*1373 | ||
| 5.5-7.5E | 1080 | 5.5-4Three Phase | 21700 | 1140 | ≤70 | 840*840 | 740*510 | 1290*930*1850 |
| 1200 | 7.5-4Three Phase | 23600 | 1280 | ≤73 | 840*840 | 740*510 | 1290*930*1850 | |
| 11-15E | 1280 | 11-4Three Phase | 27900 | 1280 | ≤71 | 860*860 | 785*510 | 1360*930*1980 |
| 1370 | 15-4Three Phase | 33900 | 1360 | ≤74 | 860*860 | 785*510 | 1360*930*1980 | |
| 18.5-22E | 1160 | 18.5-4Three Phase | 39600 | 1450 | ≤80 | 950*950 | 850*650 | 2110*1110*1720 |
| 1290 | 22-4Three Phase | 44800 | 1590 | ≤84 | 950*950 | 850*650 | 2110*1110*1720 |
