PRODUCT APPLICATION

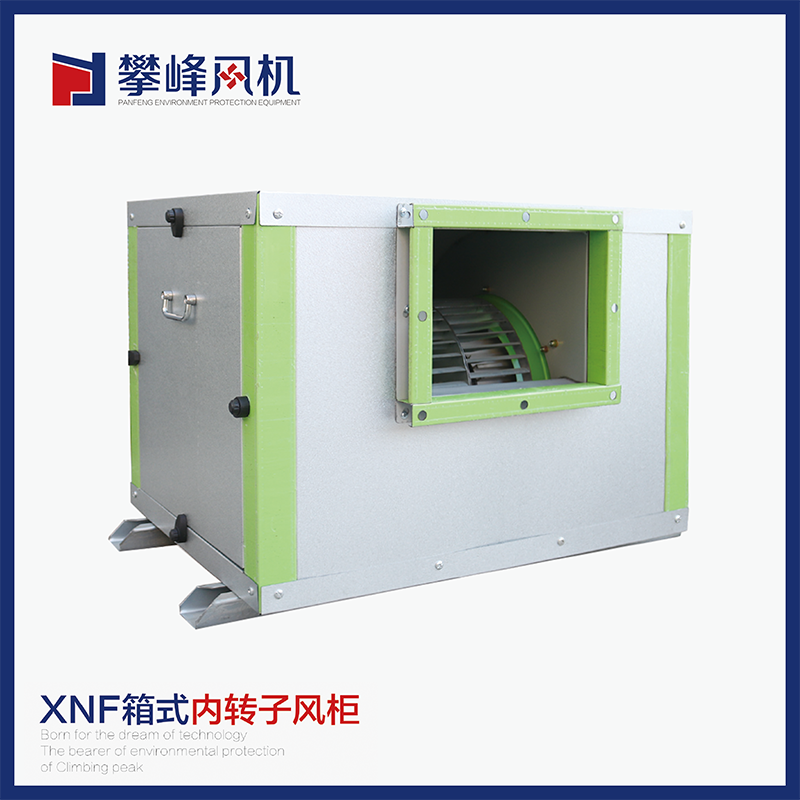

Designed for internal ventilation within equipment, this unit is an ideal fan for air conditioning and air purification systems.
Common applications include barbecue carts, integrated hood-purification units, and general exhaust systems.
PERFORMANCE
Features a direct-drive external rotor motor and components manufactured via precision molding. It utilizes a double-inlet design with a forward-curved multi-vane impeller. The unit offers a compact structure, high efficiency, low noise, high airflow, and a broad high-efficiency operating range. Its aerodynamic performance ranks among the best for similar fans globally. The discharge outlet orientation is fully adjustable, accommodating diverse installation requirements.
The company follows the service principle of “user first” and has set up a professional technical support team dedicated to serving every customer with care.
PARAMETER
| Specifications and Model | Motor power（KW） | Rotational speed（r/min） | Voltage（V） | flow（m³/h） | Total pressure（Pa） | Air inlet / Width × Height（mm） | Air outlet / Width × Height（mm） | External dimensions (including flange) (length * width * height） | capacitance（uF） | Remark |
| XNF-750 | 0.75 | 1450 | 220/380 | 3000 | 570 | 520*400 | 260*195 | 620*820*535 | 35 | Zero-degree air intake and discharge |
| XNF-1100 | 1.1 | 1450 | 220/380 | 4500 | 650 | 560*420 | 260*220 | 670*860*542 | 40 | Zero-degree air intake and discharge |
| XNF-1500 | 1.5 | 1450 | 380 | 6500 | 690 | 560*420 | 260*220 | 670*860*542 | / | Zero-degree air intake and discharge |
| XNF-1800 | 1.8 | 1450 | 380 | 7100 | 720 | 590*420 | 290*220 | 670*890*542 | / | Zero-degree air intake and discharge |
| XNF-2500 | 2.5 | 1450 | 380 | 7800 | 780 | 620*420 | 310*220 | 670*920*542 | / | Zero-degree air intake and discharge |
| XNF-3000 | 3 | 1450 | 380 | 9000 | 820 | 660*565 | 340*300 | 790*960*687 | / | Zero-degree air intake and discharge |
| XNF-4000 | 4 | 1450 | 380 | 11000 | 935 | 660*643 | 340*340 | 870*960*765 | / | Zero-degree air intake and discharge |
